Mechanical Filling Counterweight Sand

Mechanical Filling Counterweight Sand is a high-density granular material engineered for automated dry filling of enclosed cavities in industrial machinery and equipment. Produced by Shandong Haishan Industrial Technology Co., Ltd. at its 16,000 m² facility in Zouping, Shandong Province, the material is manufactured from purified raw materials under ISO 9001, ISO 14001, and ISO 45001 management systems. The site's annual capacity of 100,000 tons supports consistent batch production and documented traceability, while the material itself is treated to meet the requirements of negative-pressure conveying systems and long-term vibration service.

The product provides stable ballast weight without the need for cement mixing, curing, or secondary processing. It is intended for use in sealed or enclosed spaces where dry filling is preferred and where the material must not interfere with electronic control systems or precision sensors. Common applications include heavy machinery chassis, automated equipment cabinets, fan housings, air compressor frames, and vibration processing equipment.

Technical Specifications

How It Keeps Production Lines Running

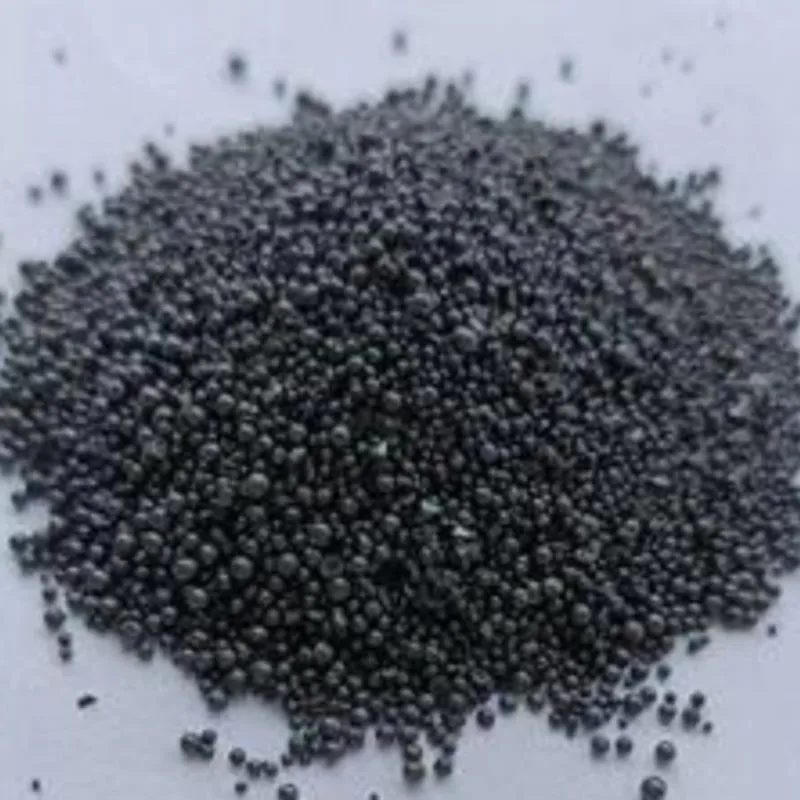

The particle shape is modified during production to improve sphericity and surface smoothness. This reduces inter-particle friction and allows the material to move consistently through automated negative-pressure conveying pipelines. The result is a lower probability of material bridging or pipeline blockage during high-speed filling operations.

For manufacturers running continuous automated production lines, this property helps maintain filling speed and reduces downtime caused by material feeding interruptions.

How It Stays Stable and Protects Sensors

Before packaging, the material undergoes a vibration compaction process. This stabilizes the particle arrangement and reduces the risk of settling, stratification, or localized weight shift during long-term high-frequency vibration. The stable bulk density supports consistent ballast performance over the equipment service life.

Multiple purification stages remove residual magnetic particles from the raw material. This prevents interference with built-in sensors, control modules, and other precision electronic components located inside the equipment cavity.

Testing and Documentation

Each production batch is inspected for the key properties that affect automated filling and long-term stability. The following test items are documented and available for review:

Third-party reports for additional properties can be provided upon request.

Quality System and Certification

Shandong Haishan Industrial Technology Co., Ltd. operates under ISO 9001, ISO 14001, and ISO 45001 management systems. The production facility includes an in-house laboratory for routine quality control of particle shape, density, and purity.

Typical Application Scenarios

• Balance weighting for heavy machinery chassis and frames
• Counterweight filling in automated equipment cabinets and enclosures
• Vibration damping for fans, air compressors, and rotating equipment
• Internal ballast for vibration processing and testing machines
• Dry filling of enclosed cavities where cement mixing is not suitable

Packaging, Inventory, and Delivery

Regular specifications are kept in stock to support fast dispatch to manufacturing facilities and assembly plants. Packaging can be supplied in ton bags, steel drums, or custom containers based on the filling equipment and handling method at the customer's site.

Each shipment includes a batch certificate with density and inspection results. Test reports for flowability, magnetic particle content, and moisture resistance can be included according to the customer's quality requirements.

Selection Guidance and Process Limitations

This Mechanical Filling Counterweight Sand is designed specifically for dry pipeline filling and direct cavity filling. It is not formulated for applications that require cement mixing, casting, or curing. For concrete ballast applications, a different material should be specified.

When preparing an inquiry, the following information helps our technical team recommend the most suitable specification:

• Required total ballast weight or filling volume
• Available cavity dimensions and filling port size
• Conveying method (negative-pressure pipeline, gravity filling, or manual filling)
• Operating environment (temperature, humidity, vibration frequency)
• Electronic components or sensors near the filling area
• Packaging preference and delivery location

Frequently Asked Questions

Q1: How does this product prevent pipeline blockages during automated filling?

The particle shape is optimized for spherical and round characteristics, which reduces inter-particle friction and allows smooth movement through negative-pressure pipelines. This design lowers the risk of bridging and material blockage during continuous conveying.

Q2: Will the material settle or shift under long-term vibration?

No. The material undergoes vibration compaction before shipment, which stabilizes the particle arrangement. Under normal high-frequency vibration service, the product maintains a consistent bulk density and does not stratify or develop localized weight shifts.

Q3: Does the product contain magnetic particles that could affect electronic controls?

No. Multiple purification stages are applied during production to remove residual magnetic particles. The final material is verified to have zero magnetic content, preventing interference with sensors and precision control components.

Q4: Will the material rust or clump in humid enclosed cavities?

The material has low moisture absorption and is processed to resist oxidation in typical enclosed cavity environments. It does not easily clump or degrade when stored in humid conditions, helping maintain stable internal weight over the equipment lifecycle.

Q5: Can this product be mixed with cement for cast-in-place applications?

No. This series is formulated for dry filling only and is not suitable for cement mixing or concrete casting. For concrete ballast applications, please consult a different material specification.

Q6: What information is needed to calculate the required quantity?

Required quantity is calculated by dividing the target ballast weight by the material bulk density (7.0 g/cm³). For example, to achieve 7,000 kg of ballast, approximately 1.0 m³ of material is needed. Our technical team can assist with volume calculations based on cavity dimensions.

Q7: Can packaging be customized for different filling equipment?

Yes. Ton bags, steel drums, and custom containers are available. Packaging can be adapted to suit crane loading, conveyor filling, or manual handling methods at the installation site.

Q8: How do you ensure batch-to-batch consistency for large-volume orders?

Each production batch is tested for density, flow rate, magnetic particle content, and moisture resistance. Batch certificates and inspection records are maintained for traceability, supporting consistent material performance across repeated orders.
