Marine Ballast Sand

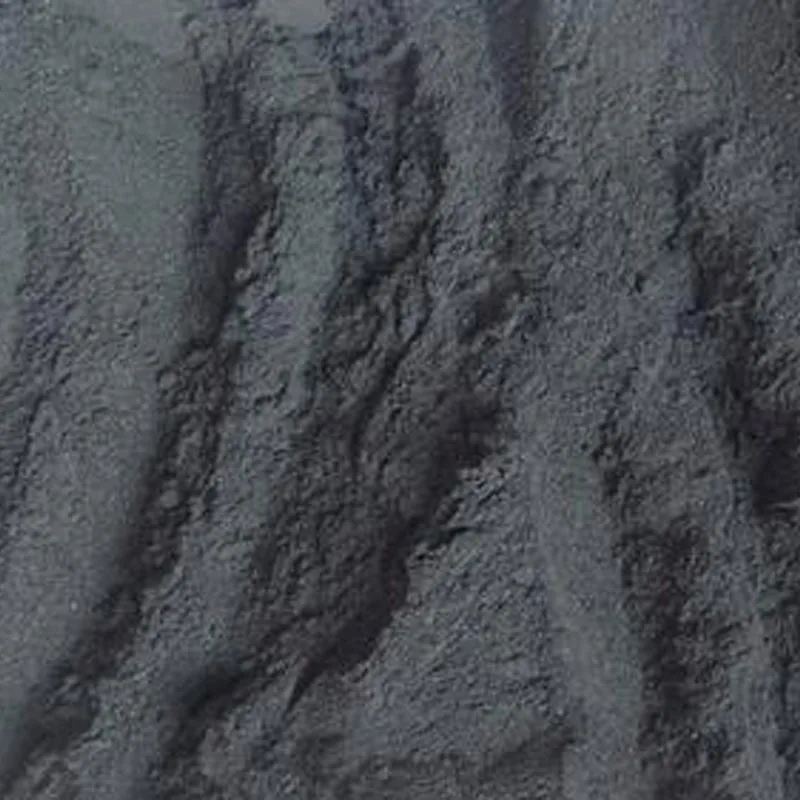

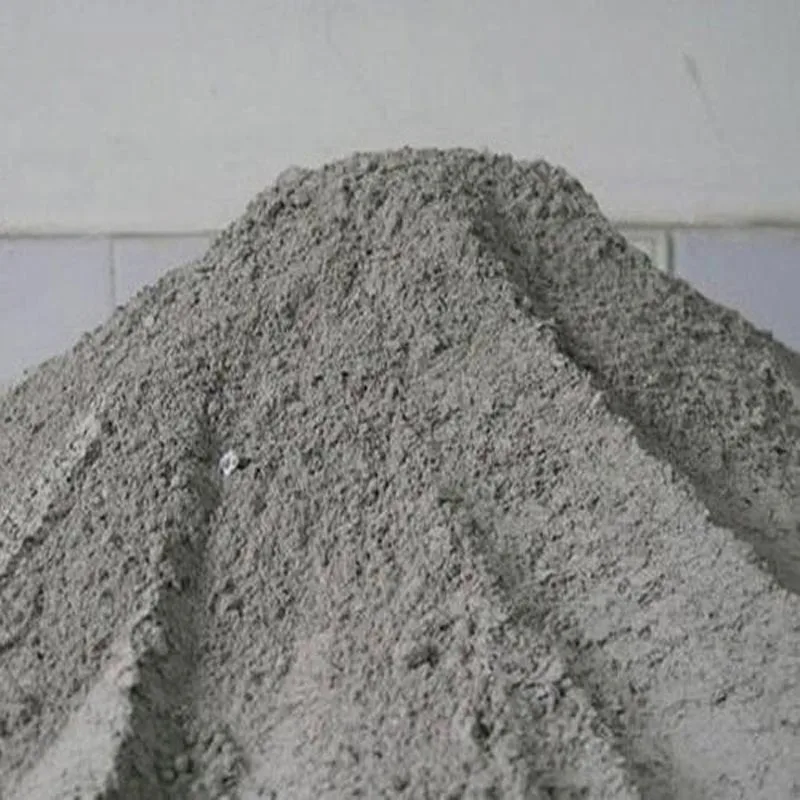

Marine Ballast Sand is a high-density granular material produced for use as permanent ballast in enclosed marine compartments. It is manufactured from chloride-resistant pig iron and coated with a multi-layer anti-corrosion system. The product is intended for ballast tank filling, vessel draft adjustment, and counterweight applications on ships and offshore platforms where long-term exposure to seawater and high humidity is expected.

The material is produced by Shandong Haishan Industrial Technology Co., Ltd. at its facility in Zouping, Shandong Province. The production site operates under ISO 9001, ISO 14001, and ISO 45001 management systems and maintains an in-house laboratory for routine quality control. These resources support consistent batch production and full material traceability for maritime buyers and engineering contractors.

This product is formulated specifically for high-salt spray and submerged marine environments. It is not recommended for standard land-based counterweight projects where the additional anti-corrosion performance would be unnecessary.

Material Composition and Coating System

The base material is a specialized pig iron selected for its resistance to chloride ion corrosion. Each particle receives a three-layer sealed coating that acts as a physical barrier against moisture and salt spray. The outer layer is designed to resist mechanical abrasion during filling and transport, while the inner layers provide long-term corrosion protection in submerged conditions.

• Chloride-resistant pig iron base material
• Three-layer sealed anti-corrosion composite coating
• Coarse, compact particle structure for scour resistance
• Low dust formulation to protect cabin equipment and deck surfaces

Key Technical Data

Protection Against Rust and Water Erosion

The three-layer coating system isolates the base metal from chloride-containing moisture. In bilge water and salt spray conditions, this barrier slows the onset of rust and prevents coating delamination. The coarse particle structure resists fracturing under wave-induced motion and hull vibration, which helps maintain a stable ballast load over long service intervals.

Material loss from water flow scouring is significantly reduced compared with uncoated or fine-grained alternatives. This property is especially relevant for ocean-going vessels that experience continuous wave action and for offshore platforms subject to periodic swell and current.

Meets Environmental Standards and Low Dust

Heavy metal impurities are controlled during raw material selection and final production. This helps prevent marine pollution during ballast water discharge, maintenance, or material replacement. The low dust design reduces airborne particles in confined tank spaces and minimizes contamination of nearby cabin equipment and deck surfaces.

Test reports for heavy metal content and environmental compliance are available upon request. These documents support vessel environmental audits and port state inspections.

Testing and Quality Verification

Every production batch is inspected for the physical and environmental properties that matter most in marine service. The table below summarizes typical test items and the documents provided for each.

All test records are retained for traceability. Buyers can request copies of relevant documents before shipment.

Quality System and Certification

Shandong Haishan Industrial Technology Co., Ltd. operates under ISO 9001, ISO 14001, and ISO 45001 management systems. The production facility includes an in-house laboratory for routine analysis of particle shape, density, coating integrity, and chemical composition.

Typical Applications

• Ballast tank counterweight filling for ocean-going cargo vessels
• Hull balance weight for passenger ferries and cruise ships
• Counterweight for offshore wind power and petroleum platforms
• Draft adjustment for specialized marine engineering vessels
• Enclosed counterweight boxes on floating structures

Packaging and Supply Availability

Common specifications are kept in stock to support rapid dispatch to major ports and shipyards. Packaging can be supplied in ton bags, steel drums, or custom containers according to project requirements. Each shipment includes a batch certificate with density and inspection results. Additional documentation for environmental compliance and coating performance can be provided upon request.

Supply chain records are maintained from raw material receipt to final dispatch, giving marine procurement teams a documented chain of custody for the ballast material.

Selection Guidance and Inquiry Information

To specify the correct product, buyers should confirm the operating environment and required ballast weight. For sealed compartments exposed to continuous seawater contact, Marine Ballast Sand is appropriate. For conventional land-based projects with no corrosion risk, a general-purpose counterweight sand is more cost effective.

When preparing an inquiry, the following information helps our technical team recommend the most suitable specification:

• Required total ballast weight or available tank volume
• Ballast tank or compartment dimensions and access points
• Required bulk density, if specified
• Vessel or platform type and operating sea conditions
• Packaging preference and delivery location
• Required inspection documents or third-party test reports

Frequently Asked Questions

Q1: What bulk density does Marine Ballast Sand provide?

The bulk density is maintained at 7.1 g/cm³ with a tolerance of ±2%. This value is verified by batch inspection and included in the batch certificate.

Q2: Can the material be used in continuously submerged ballast tanks?

Yes. The product is designed for long-term contact with seawater and high humidity. The chloride-resistant base material and three-layer coating reduce the risk of rust and structural degradation under immersion conditions.

Q3: Will wave motion or hull vibration cause the particles to break down?

No. The coarse, compact particle structure resists mechanical stress from wave scouring and vessel movement. Particle integrity testing is performed on production batches to confirm resistance to pulverization.

Q4: Does the product generate dust during filling or operation?

Dust generation is minimal because of the coarse particle size and sealed surface coating. This reduces airborne contamination in enclosed ballast compartments and around deck equipment.

Q5: Is this product suitable for ordinary land-based counterweight applications?

Not recommended. The anti-corrosion features increase production cost, which is unnecessary for dry, non-corrosive environments. A standard land counterweight sand would provide a more economical solution.

Q6: What documentation is included with each shipment?

Each delivery includes a batch certificate with density and inspection results. Anti-corrosion and environmental test reports are available upon request. This documentation supports vessel certification and audit requirements.

Q7: How should I calculate the required quantity of ballast material?

Required quantity is typically calculated by dividing the target ballast weight by the material bulk density. For example, to achieve 10,000 kg of ballast at 7.1 g/cm³, approximately 1.41 m³ of material would be needed. Our technical team can assist with volume and weight calculations based on your specific tank dimensions.

Q8: Can packaging be customized for different installation methods?

Yes. Ton bags, steel drums, and custom containers are available. Packaging can be adapted to suit crane loading, conveyor filling, or manual handling methods at the installation site.
