Wear-Resistant Steel Shot For Metal Surface Blasting And Shot Peening Treatment

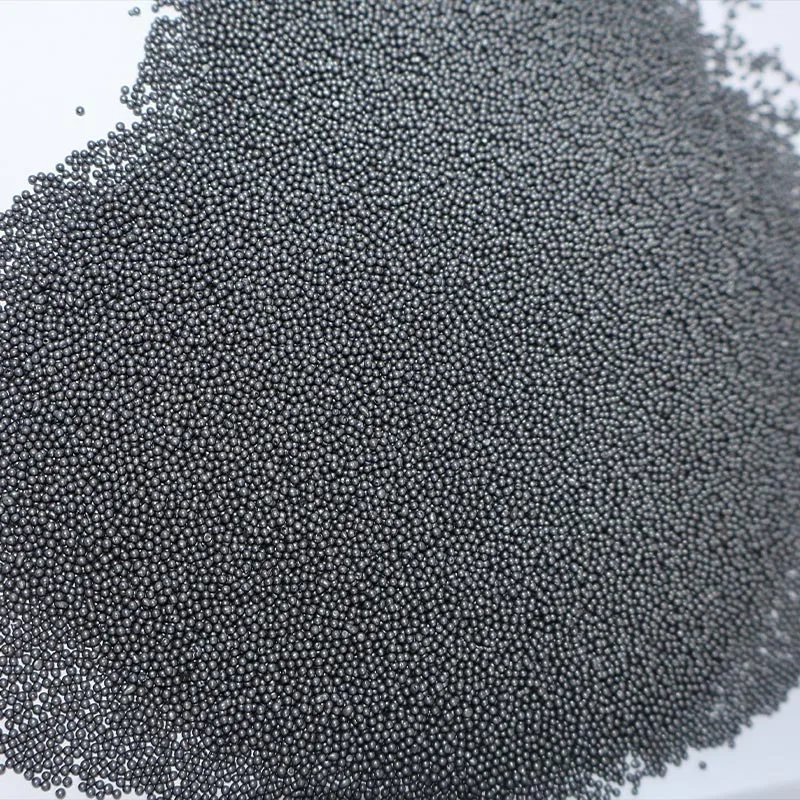

Steel shot is a spherical metal abrasive used in shot blasting and surface preparation. Shandong Haishan Industrial Technology produces steel shot from high-carbon steel through melting, atomization, heat treatment, and precise screening. The final product has a uniform spherical shape, consistent hardness, and good resistance to fracture during repeated impact cycles.
Unlike angular abrasives such as steel grit, steel shot works mainly through impact energy. It removes rust, mill scale, and light contaminants while producing a relatively smooth surface profile. This makes it suitable for applications where coating adhesion and surface uniformity are important. Steel shot is also used for shot peening to improve fatigue resistance of metal components.
Typical Chemical Composition and Hardness
| Element / Property | Typical Value |
| Carbon (C) | 0.85 - 1.20% |
| Manganese (Mn) | 0.60 - 1.20% |
| Silicon (Si) | 0.40 - 1.20% |
| Sulfur (S) | ≤ 0.05% |
| Phosphorus (P) | ≤ 0.05% |
| Hardness | HRC 40 - 50 |
| Metallographic Structure | Tempered martensite |
| Minimum Density | 7.4 g/cm³ |
Available Particle Sizes

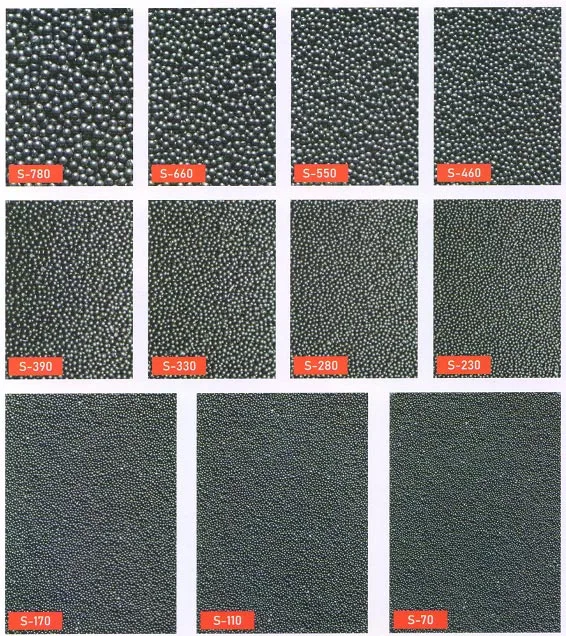

Steel shot is supplied in a range of sizes to match different blasting equipment and surface requirements. Common grades include S 780, S 660, S 550, S 460, S 390, S 330, S 280, S 230, S 170, S 110, and S 70. The complete size distribution table is available on the product detail page or upon request.
Related Abrasive Products
For applications that require a sharper cutting action and deeper surface profile, steel grit may be more suitable. Steel grit is angular and works by cutting rather than impacting, which is effective for heavy rust and thick scale removal.
When a more controlled cutting action is needed, especially for deburring or surface preparation on softer metals, steel cut wire shot offers a balance between impact and cutting. Its cylindrical shape provides good cleaning with less embedment risk.
For non-abrasive applications such as counterweight filling or high-density ballast, counterweight sand provides a cost-effective material with consistent density. It is not intended for surface treatment but serves industrial weighting needs.
Quality Control
Each batch of steel shot is tested for chemical composition, hardness, particle size distribution, sphericity, and density. The laboratory uses a SPECTRO spectrometer for composition analysis and an Irwin fatigue life tester for selected performance checks. Manufacturing follows GB/T 18838 and SAE J444 standards.
Frequently Asked Questions
What is the main use of steel shot?
Steel shot is primarily used for cleaning, descaling, and surface preparation of metal components. It is also used for shot peening to improve fatigue strength and for creating anchor profiles before coating.
How does steel shot compare with steel grit?
Steel shot is spherical and works by impact. It leaves a smoother surface with less material removal. Steel grit is angular and cuts the surface, producing a rougher profile and faster removal of heavy contaminants.
Which particle size should I choose for steel structure blasting?
For general steel structure cleaning, S 280 or S 330 are common starting points. The exact choice depends on the required surface profile, equipment type, and workpiece thickness. A finer size may be needed for thin materials to avoid distortion.
- View as

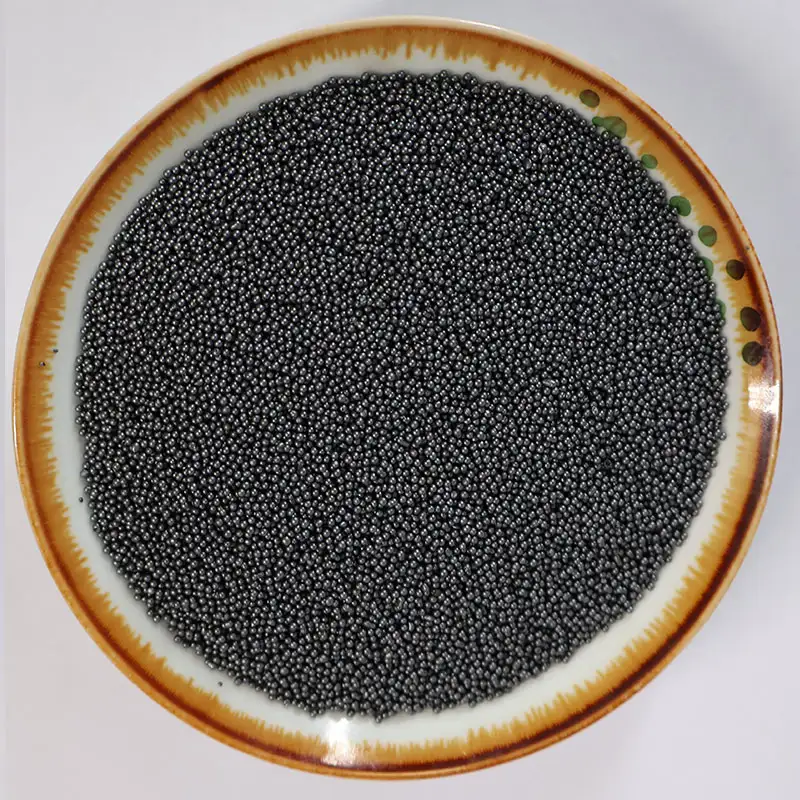

Steel Shot for Steel Structures
Choose Shandong Haishan Industrial Technology dedicated steel structure steel shot for qualified rust removal of large steel structure components. Adopting mixed particle size formula, Steel Shot for Steel Structures solves industry pain points of heavy rust and massive welding slag efficiently. It reaches national Sa2.5 rust removal standard in one pass, perfectly matching through-type production lines and anti-corrosion coating requirements for steel structures, with excellent moisture resistance and low abrasion loss.

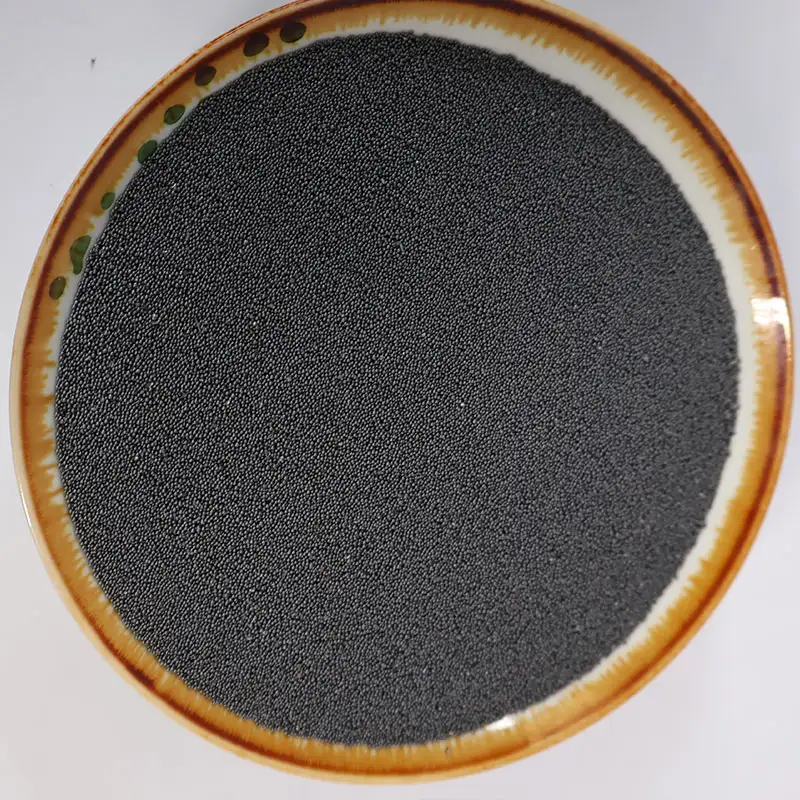

S330 Cast Steel Shot
For standard medium-duty rust removal and general workpiece shot blasting, Shandong Haishan Industrial Technology S330 Cast Steel Shot is the industry’s most popular medium-size all-round choice. It offers a balanced performance between fine S230 and coarser steel shot, while delivering excellent equipment compatibility and cost efficiency. This makes it the top choice for most conventional blasting applications.

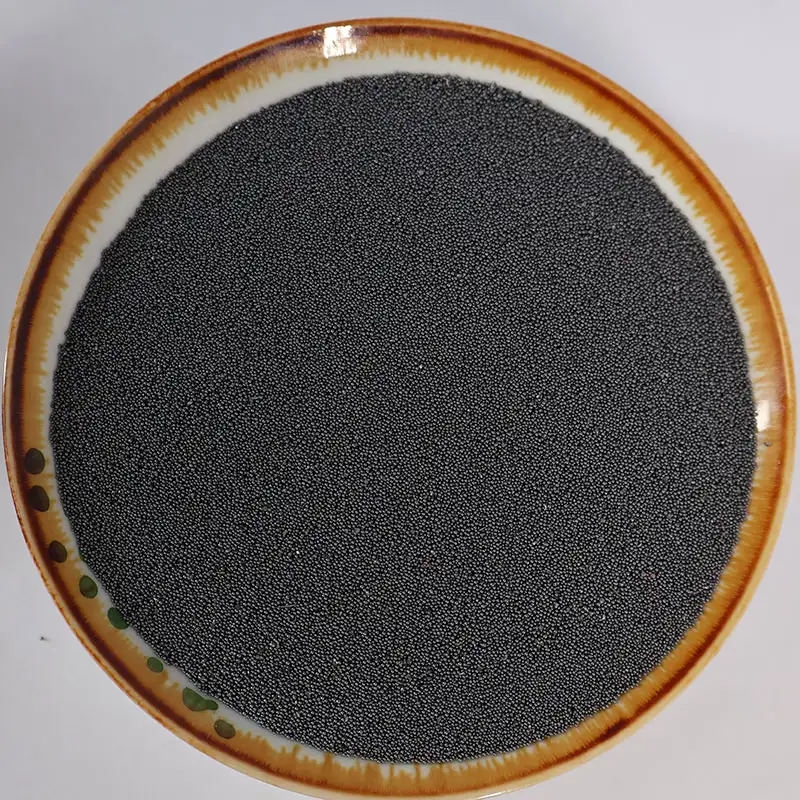

S230 Cast Steel Shot
Shandong Haishan Industrial Technology S230 Cast Steel Shot is the go-to option for fine blasting of thin sheets and precision components. Certified to SAE international standards, it combines highly uniform particle size with controlled low surface roughness. The result is a delicate, clean finish that leaves thin workpieces undistorted, while ensuring full compatibility with imported precision blasting equipment and high-end coating pretreatment lines.

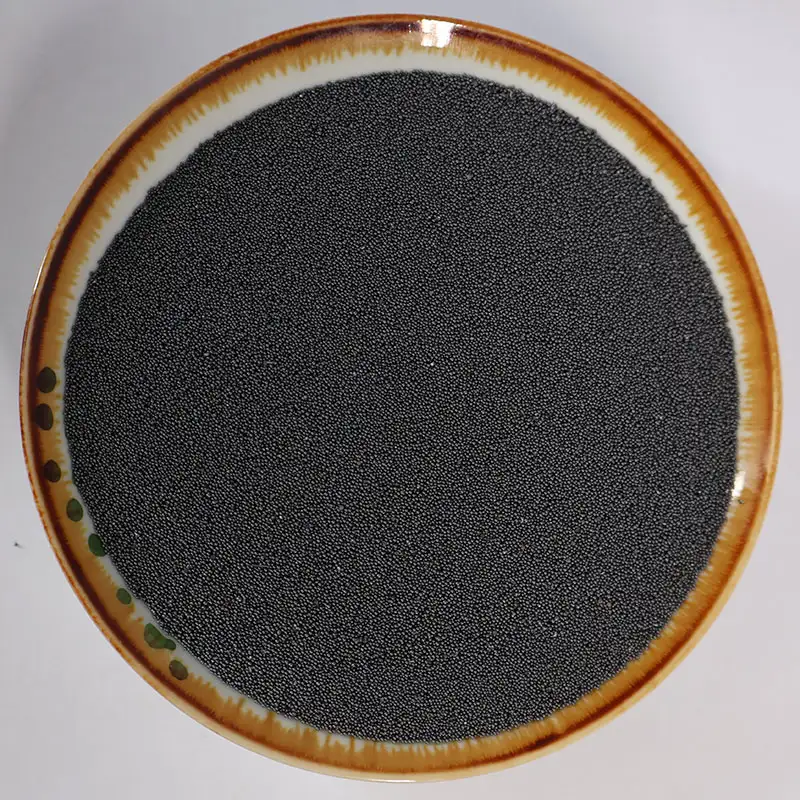

Wear-resistant Steel Shot
Shandong Haishan Industrial Technology wear-resistant steel shot is engineered for 24-hour automatic continuous shot blasting lines. Its ultra-low loss and outstanding wear resistance make it a perfect match for unmanned, high-tempo mass production, while significantly reducing manual refill frequency and equipment downtime. This translates into markedly lower consumable and operating costs over long-term continuous production.

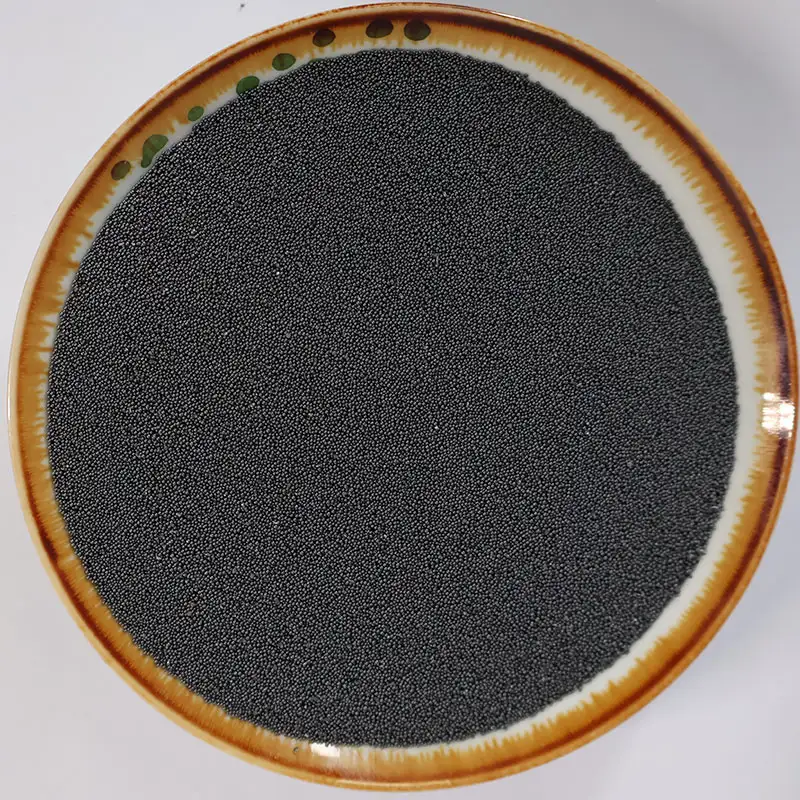

Sandblasting Steel Shot
Purpose-built for outdoor open and mobile sandblasting, Shandong Haishan Industrial Technology's sandblasting steel shot handles high-pressure open-air work with ease — fracture-resistant under airflow, low in dust, and smooth in pipeline delivery with zero gun blockage. Factory-direct wholesale pricing, OEM/ODM available, ready for bulk export. Recyclable and eco-friendly, it's the cost-effective choice for on-site rust removal and anti-corrosion pretreatment of large outdoor steel structures.

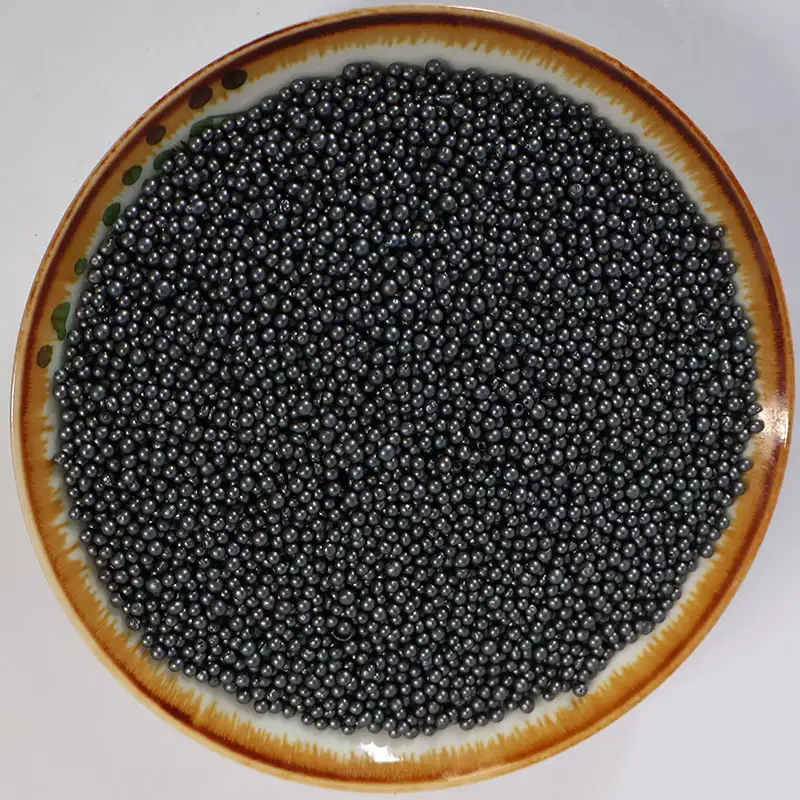

Rust Removal Steel Shot
Shandong Haishan Industrial Technology rust removal steel shot is purpose-built for bulk industrial rust removal and steel renovation projects. Engineered exclusively for derusting applications, it combines strong impact kinetic energy with cleaning efficiency 35% higher than ordinary cast steel shot. The result is dead-angle-free rust removal and uniform anchor patterns, delivering excellent cost performance across steel renovation and rust removal scenarios.
