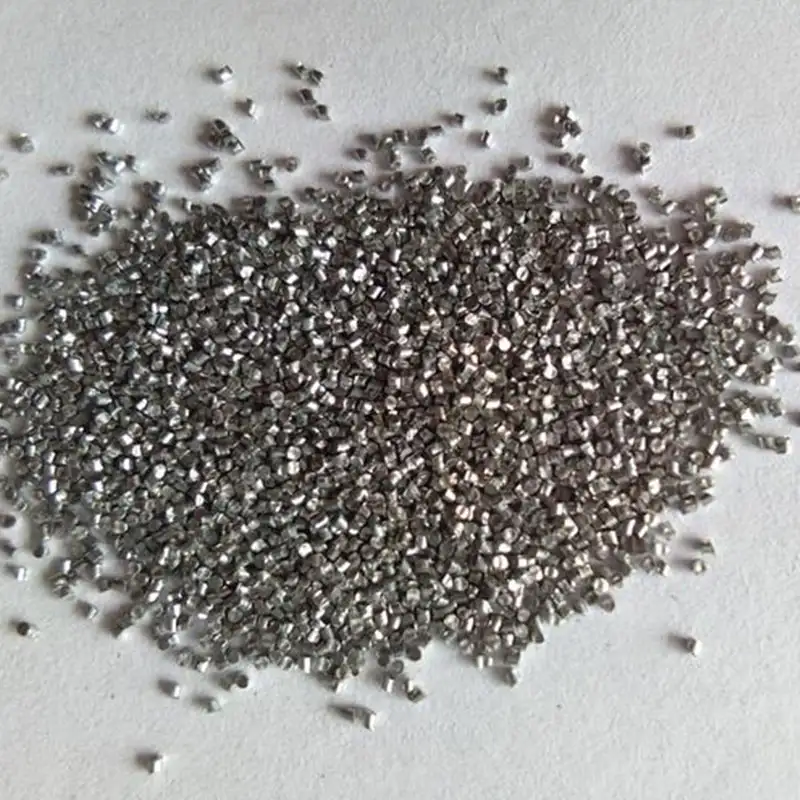

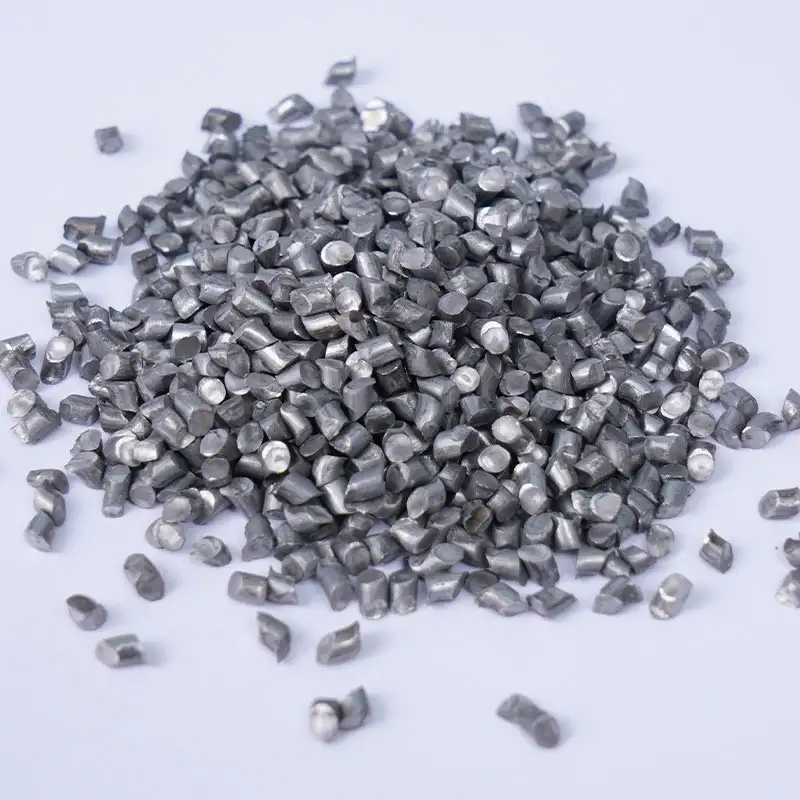

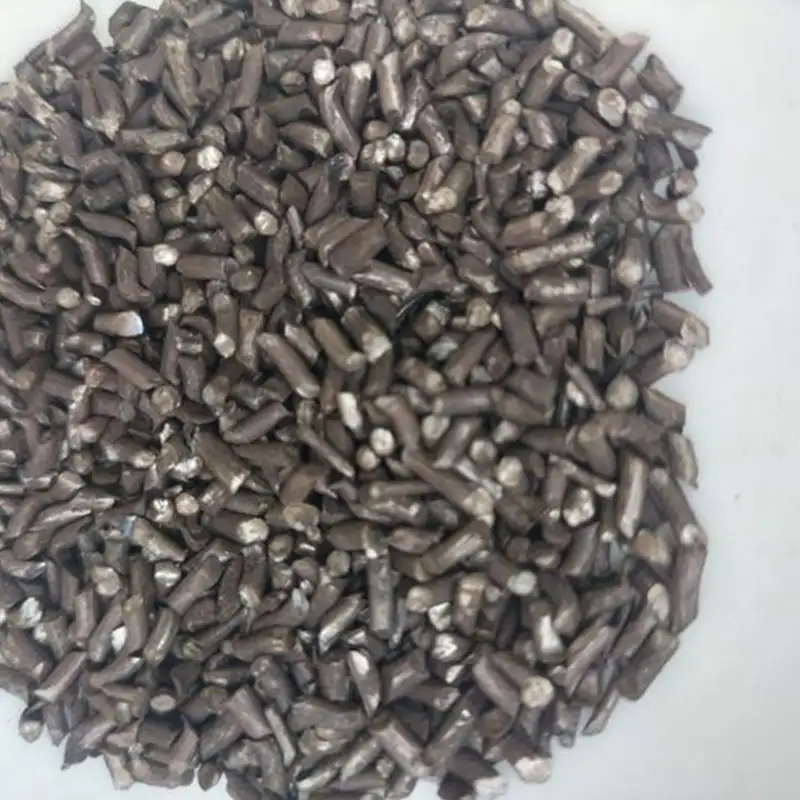

Descaling Wire Cut Shot

Descaling Wire Cut Shot is a high carbon steel abrasive produced by Shandong Haishan Industrial Technology for heavy‑duty rust and scale removal. The company has an annual production capacity of 100,000 tons and supplies customers in more than 50 countries. This product is manufactured from high carbon steel wire through a cutting process that retains moderately sharp edges. It is designed for applications where one‑pass removal of thick rust, mill scale, or welding slag is required on steel structures thicker than 6mm.

Manufacturing Process

The raw material is high carbon steel wire with a controlled carbon content. The wire is cut to a length‑to‑diameter ratio of approximately 1:1, then hardened to achieve the target hardness range. The cutting process produces particles with flat ends and sharp circumferential edges. These edges are intentionally not fully passivated, as the sharp profile contributes to the cutting action needed for heavy rust and scale removal.

Each batch is tested for chemical composition, hardness, and size distribution before release. Test methods reference GB/T 18838 and SAE J444 where applicable.

Technical Specifications

Chemical Composition

Carbon content is verified by direct‑reading spectrometer on each incoming wire coil and on finished product samples.

Mechanical Properties

Two hardness grades are available. The standard grade covers the full HRC 36 to 52 range and is suitable for general rust removal. The heavy‑duty descaling grade is controlled to HRC 45 to 52 for applications requiring higher impact energy. Please specify the required grade when ordering.

Performance Characteristics

• Sharp edge retention: The cutting process produces particles with angular edges that are not fully rounded. This maintains cutting action over multiple blasting cycles and helps remove thick rust and mill scale in fewer passes.
• Higher impact energy: Compared to spherical cast steel shot of the same size, the cylindrical shape provides a larger contact area on the workpiece surface, which increases the energy transferred per impact.
• Controlled breakdown: The carbon content and heat treatment are balanced to reduce premature shattering. Particle breakdown occurs gradually, which helps maintain a working mix of sharp and partially rounded particles during continuous operation.
• Equipment compatibility: The particle size and density are suitable for both wheel blast machines and air blast systems. No equipment modifications are required when switching from other steel abrasives of similar size.

Product Limitation

This product is not recommended for steel plates thinner than 6mm or for precision components. The sharp edges and high impact energy can cause excessive surface roughness or deformation on thin sections. For workpieces with a thickness below 6mm, a smaller diameter cut wire shot or a passivated product is recommended. Free sample testing is available to verify compatibility before bulk purchase.

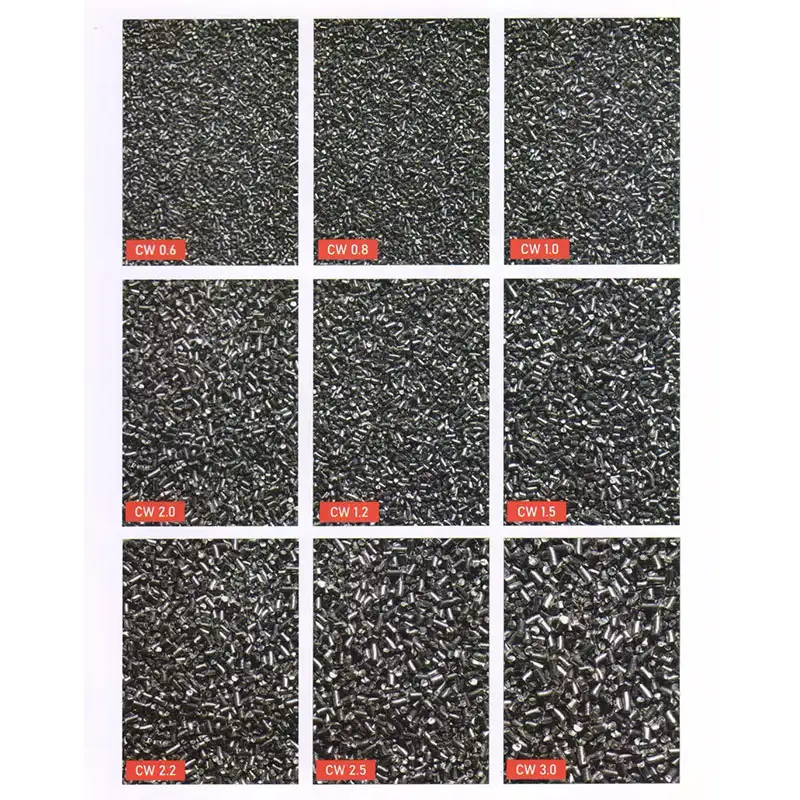

Size Selection Guide

The table below provides general guidance for selecting the appropriate wire diameter based on the target application. Actual selection may vary depending on equipment type, blast pressure, and surface profile requirements.

Note: Surface profile values are approximate and depend on blast pressure, standoff distance, and workpiece hardness.

Comparison with Other Steel Abrasives

The following comparison highlights typical differences between descaling wire cut shot and other common steel abrasives. Actual results may vary depending on the specific grade and application conditions.

Application Cases

The following examples come from customer records. Names are withheld for confidentiality, but relevant data are on file.

• Bridge renovation project in Shandong: Used 1.5mm descaling wire cut shot for outdoor blasting of steel bridge girders with heavy pitting rust. Surface cleanliness reached Sa 2.5 in one pass. Abrasive consumption was approximately 1.2 kg per square meter, about 18% lower than the cast steel grit previously used.
• Shipyard deck descaling: Applied in a wheel blast machine for removing old coating and rust from ship deck plates. The product completed the work in a single pass, reducing overall blasting time by an estimated 25% compared to the previous abrasive.
• Storage tank exterior cleaning: Used with outdoor mobile blast equipment for cleaning the exterior of a large crude oil storage tank. The product maintained consistent performance over 200 hours of continuous operation, and no abnormal equipment wear was observed.

Application Scope

This product is suitable for heavy‑duty rust removal and descaling on thick steel sections. Typical applications include:

• Scrap steel recycling: heavy rust removal before reprocessing
• Bridge steel structures: outdoor rust renovation and anti‑corrosion preparation
• Shipbuilding and repair: deck and hull plate rust removal
• Engineering machinery: removal of stubborn weld slag and hardened scale
• Large storage tanks: exterior surface blasting and cleaning

Not suitable for steel plates thinner than 6mm or precision components.

Quality Assurance

Haishan operates quality control through the entire production chain, from incoming wire inspection to final batch release. The laboratory is equipped with a direct‑reading spectrometer, fatigue life tester, and hardness tester. Every batch is tested for chemical composition, hardness, and size distribution before shipping. The company holds ISO 9001, ISO 14001, and ISO 45001 certifications. Product characteristics are evaluated with reference to GB/T 18838 and SAE J444. Certificates and batch test reports are available upon request.

Frequently Asked Questions

What is the difference between the standard grade and the heavy‑duty descaling grade?

The standard grade covers a hardness range of HRC 36 to 52 and is suitable for general rust removal. The heavy‑duty descaling grade is controlled to HRC 45 to 52 for applications requiring higher impact energy on thick mill scale and welding slag. Both grades are listed in the mechanical properties table above.

Can this product be used on steel plates thinner than 6mm?

No, this product is not recommended for steel plates thinner than 6mm. The sharp edges and high impact energy can cause excessive surface roughness or deformation. For thin plates, a smaller diameter cut wire shot or a passivated product is recommended.

Does this product work with both wheel blast machines and air blast systems?

Yes, the particle size and density are suitable for both equipment types. No parameter adjustments are needed when switching from other steel abrasives of similar size.

How does descaling wire cut shot compare to steel grit?

Both are angular abrasives, but descaling wire cut shot has a tougher core and breaks down more slowly than steel grit. This results in lower dust generation and longer media life in most heavy‑duty applications. Steel grit may create a deeper anchor profile in some cases, so selection depends on the specific coating specification.

Do you provide free samples for testing?

Yes, free samples are available for compatibility testing. We recommend testing on a small area of your actual workpiece to confirm surface profile and cleaning performance before placing a bulk order.

What documentation is included with each shipment?

Each shipment includes a mill test certificate showing chemical composition, hardness, and size distribution. Additional test reports and certificates are available on request.
