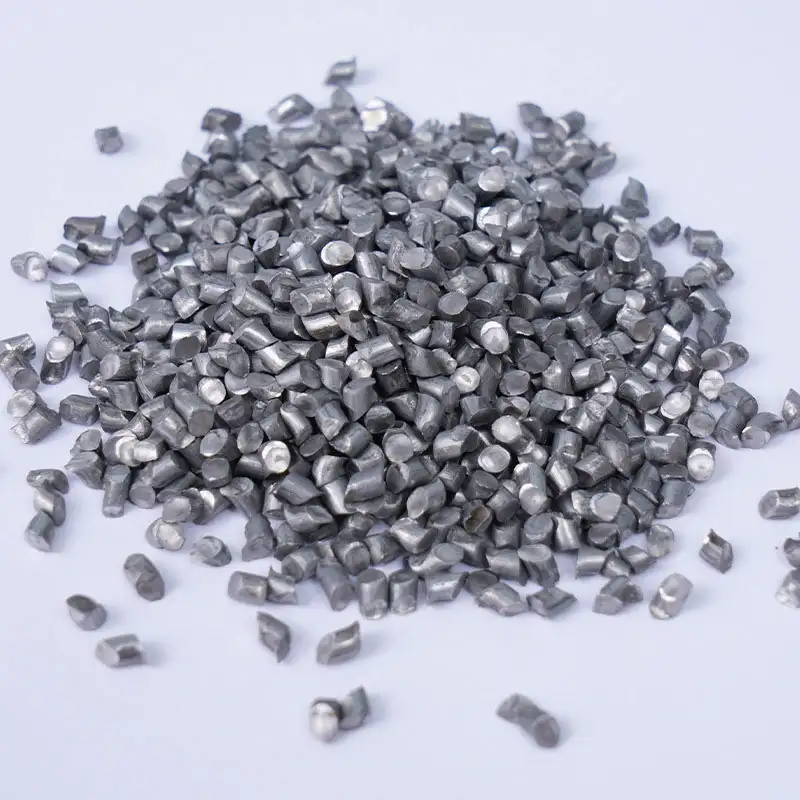

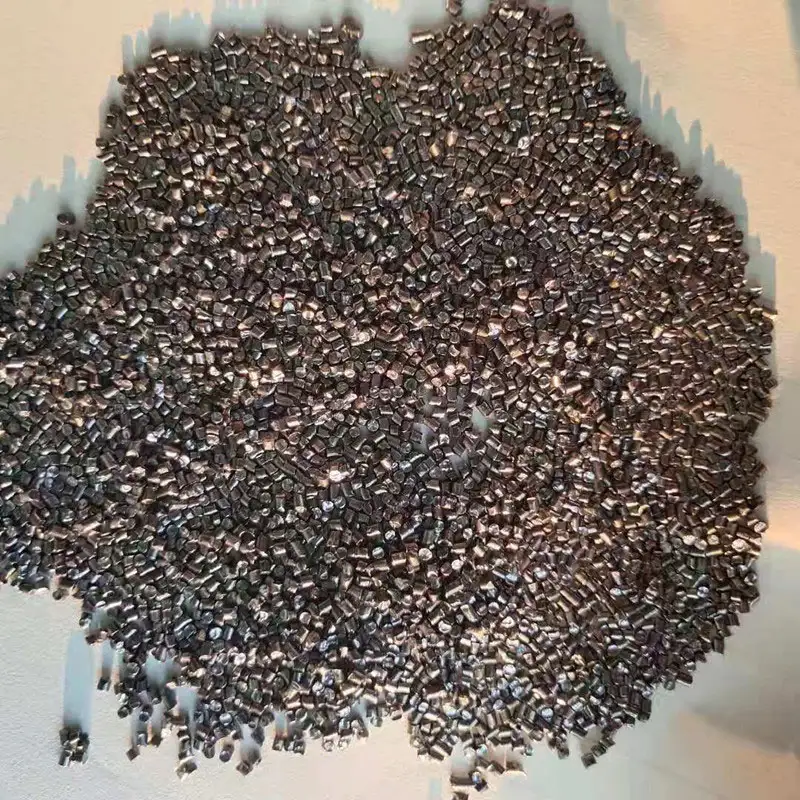

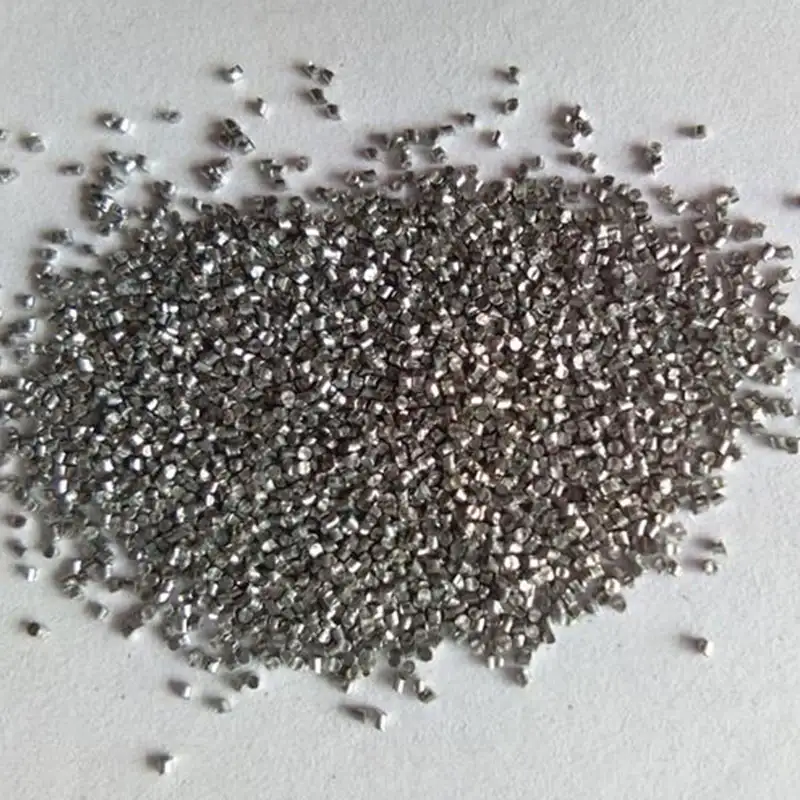

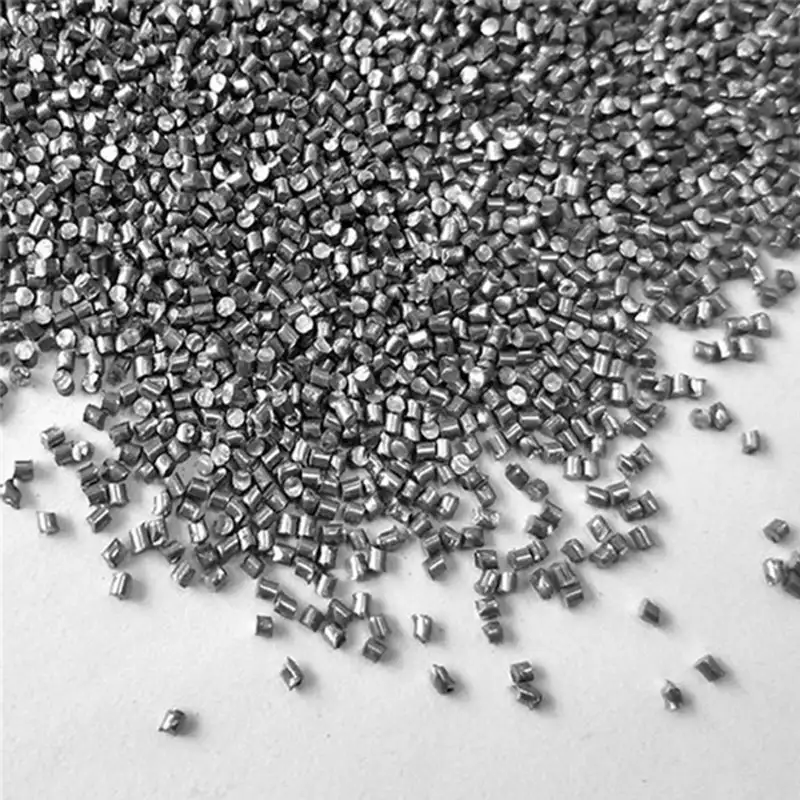

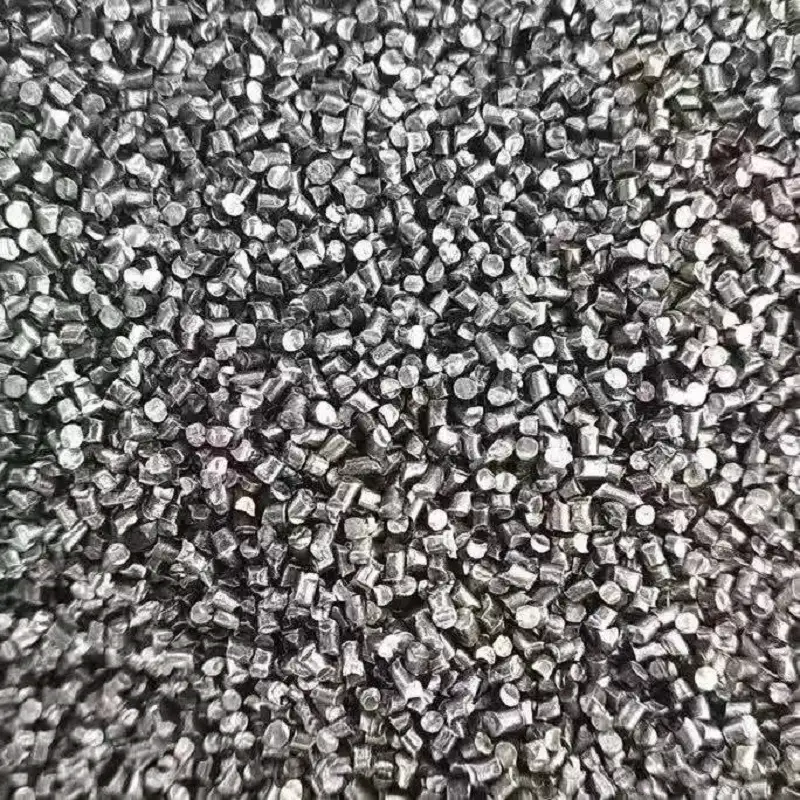

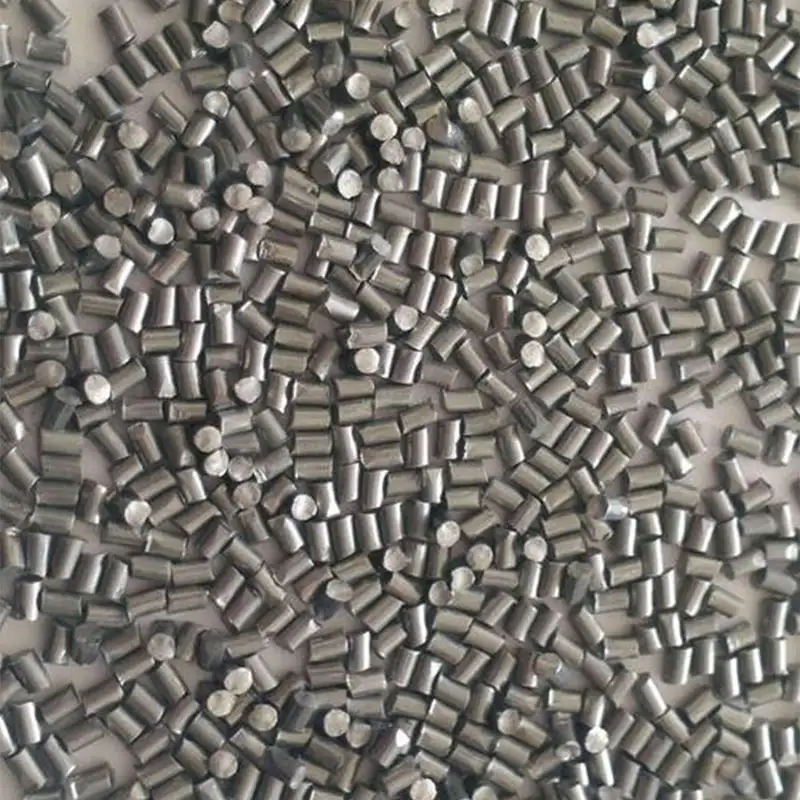

Steel Wire Cut Shot

Shandong Haishan Industrial Technology produces steel wire cut shot by cutting high carbon or low carbon steel wire into short cylinders. The wire is not melted or atomized, so the final product keeps the original grain structure of the steel. This gives the shot a combination of cutting ability from its sharp edges and toughness from the wire drawing process. The product is intended for heavy duty surface preparation where high impact energy is required.

Key Properties

Cutting Performance and Toughness

The cut ends of each particle have sharp edges that help remove thick rust, mill scale, and weld slag. At the same time, the internal structure remains ductile because the wire was not remelted. Under repeated impact, the particles tend to wear down gradually rather than shatter. This keeps the shot in service longer and reduces the amount of broken material mixed into the abrasive.

Low Dust Generation

Since the shot resists fracturing, it produces fewer fine particles during blasting. Most of the abrasive remains as solid pieces after impact, even when it eventually wears out. This reduces the load on dust collectors and keeps the work area cleaner.

Density and Impact Energy

The density is approximately 7.8 g/cm³, which provides sufficient impact energy for removing heavy contaminants from steel surfaces. This makes the product suitable for high powered blast wheels and open nozzle blasting systems.

Recycling Capability

With proper screening and magnetic separation, the shot can be recycled many times. The particles remain intact enough to be captured and reused, which lowers the overall abrasive consumption.

Typical Applications

• Removing thick rust from ship decks and offshore structures
• Cleaning weld slag from heavy machinery components
• Shot peening of automotive springs, crankshafts, and other load bearing parts
• Preparing thick walled steel pipe and heavy castings before coating

This product is not recommended for thin sheet metal, aluminum alloys, or parts where surface finish is critical. The sharp edges and high impact energy can deform or scratch softer materials.

Selection and Use Notes

Before choosing a size, consider the type of blast equipment and the thickness of the workpiece. Air pressure, wheel speed, and shot flow rate all influence the cleaning rate and surface roughness. We recommend starting with a smaller shot size if you are unsure, then increasing the size if more impact energy is needed.

For parts with complex shapes or thin sections, a rounder abrasive such as cast steel shot may be a better choice. Our team can review your specifications and suggest a suitable option.

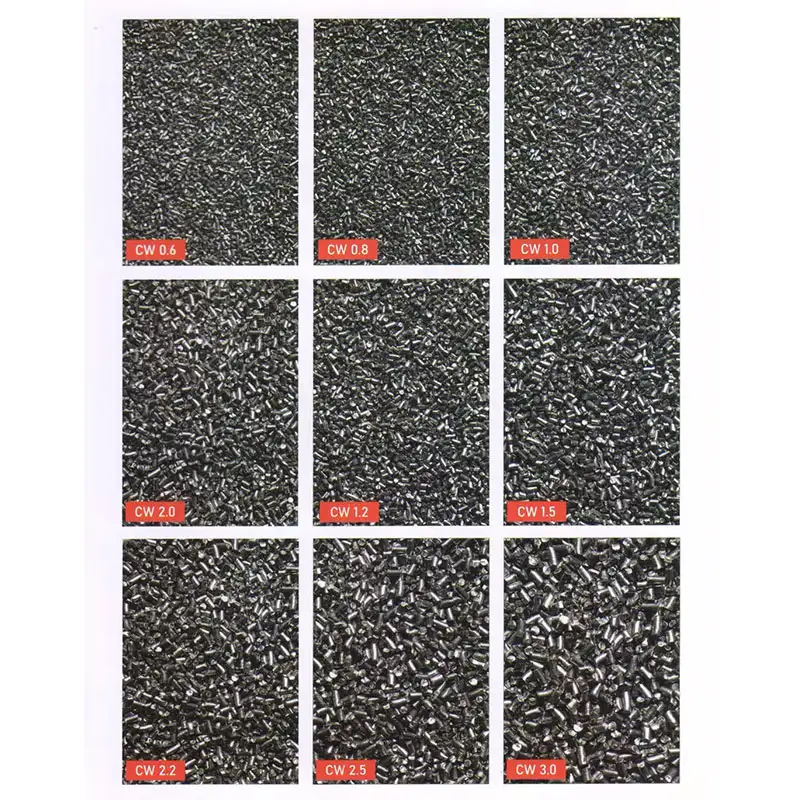

We keep common sizes from 0.8 mm to 3.0 mm in stock. Custom sizes and edge rounding services are available on request.

Frequently Asked Questions

Q1: What is the difference between steel wire cut shot and cast steel shot?

A: Cast steel shot is produced by melting and atomizing steel, which creates a spherical shape. Steel wire cut shot is cut from solid wire, so it has sharp edges and a cylindrical shape. The cut shot removes contaminants more aggressively at first, but the edges wear down with use. Cast shot is rounder and more consistent, but may not provide the same cutting action on tough coatings.

Q2: Can this product be used on stainless steel surfaces?

A: It can be used on stainless steel, but care is needed. The iron from the shot can transfer to the stainless surface and cause rust staining if the surface is not passivated afterwards. For stainless steel, a dedicated stainless steel cut wire shot is often recommended to avoid cross contamination.

Q3: What size range do you offer for steel wire cut shot?

A: We offer standard sizes from 0.8 mm to 3.0 mm. Custom sizes can be produced if the order quantity is sufficient. The right size depends on the blast machine and the required profile. Our engineers can help you select a size after reviewing your equipment details.

Q4: How many times can the shot be recycled?

A: The number of cycles depends on the application and equipment. In heavy duty cleaning, the shot can often be recycled several thousand times before it becomes too small or worn. The key factor is whether the shot is being separated and screened properly. We recommend regular screening to remove worn particles and maintain performance.

Q5: Can the sharp edges be rounded if I need a softer finish?

A: Yes, we can apply an edge rounding process to reduce the aggressiveness of the shot. This softens the cutting action and may be suitable for parts that require a smoother surface finish. Please contact us with your requirements.

Technical Data

Note: The values above represent typical ranges for steel wire cut shot. Actual results may vary by production lot. Test reports are available upon request.
